A drip under a UV reactor often appears just after a lamp or quartz sleeve change - when the system has been opened, cleaned, and put back under pressure. To prevent UV chamber leaks, focus on the sealing surfaces and service procedure rather than simply tightening parts harder. A correctly maintained UV system should return to service dry, secure, and ready to protect the water supply.
For homeowners, cottage owners, and water-treatment professionals, a small leak deserves prompt attention. It can damage nearby equipment, create a persistent mess, and allow water to reach the lamp connection or controller. The good news is that most chamber leaks trace back to a short list of serviceable components: O-rings, quartz sleeves, retaining nuts, drain fittings, and threaded connections.
Understand where a UV chamber can leak

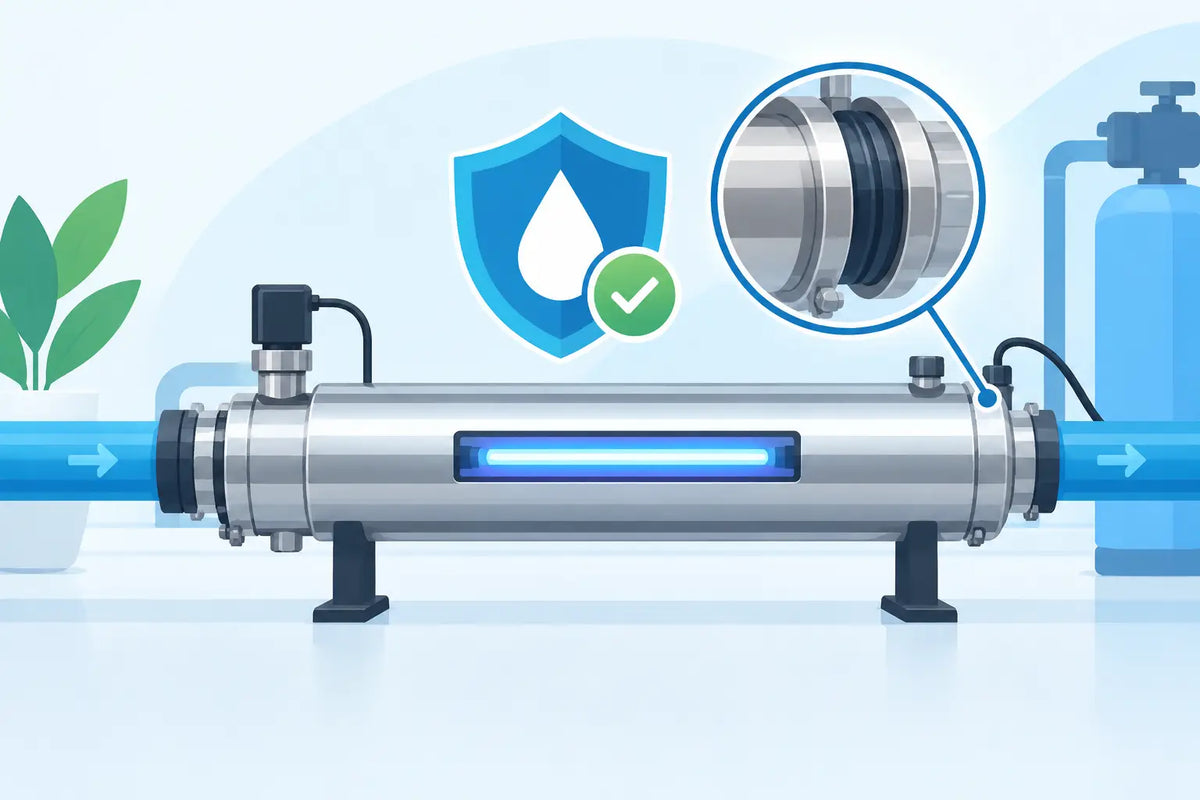

A UV water treatment chamber is a pressurized vessel. Water flows around a quartz sleeve, while the UV lamp sits safely inside that sleeve and remains dry. The sleeve passes through seals at one or both ends of the chamber, depending on the system design. If those seals are dirty, worn, misplaced, or over-compressed, water can escape when pressure returns.
The most common leak point is the quartz sleeve O-ring. Some systems use a single O-ring at each end, while others use a specific combination of O-rings, gland nuts, compression nuts, or end caps. These components are designed to fit one another precisely. Using an O-ring that looks close enough, installing it in the wrong position, or reusing one that has become flattened can lead to a slow drip or a more obvious leak.
Leaks can also develop at a drain plug, sensor port, threaded union, or the chamber itself. A leak from the center of a stainless steel chamber is less common and may indicate corrosion, freeze damage, or physical impact. In that situation, replacing a seal will not solve the underlying problem.
How to prevent UV chamber leaks during service
The best time to prevent a leak is before the chamber is reassembled. Start by shutting off the water supply to the UV unit, opening a downstream faucet or pressure-relief point, and allowing the chamber to depressurize completely. Disconnect power to the controller before removing the lamp. Never service a pressurized UV chamber or work around a connected electrical component with wet hands.
Remove the lamp carefully, then follow the manufacturer-specific procedure for taking out the sleeve and seals. UV systems vary considerably by brand and model. A sleeve retaining nut from one unit may look similar to another but use a different thread pattern, gasket design, or compression depth. Keep parts in their original order during service, especially if you are working on a system you have not maintained before.
Before installing a new or cleaned sleeve, inspect the O-rings closely. Replace any seal that is cracked, nicked, stretched, hardened, flattened, or sticky. O-rings are inexpensive compared with the cost and inconvenience of water damage, so replacement during scheduled lamp service is often sensible. If the manufacturer specifies a food-grade silicone lubricant, use only a small amount. Too much lubricant can attract debris or allow an O-ring to shift as the nut is tightened.
Clean the O-ring groove and the sleeve sealing area with a soft, lint-free cloth. Mineral scale, sand, old lubricant, or a fragment of the previous O-ring can stop the seal from seating evenly. This is particularly relevant for well water and cottage systems, where iron, hardness, and sediment can build up quickly. Avoid abrasive pads or sharp tools that can scratch the quartz sleeve or sealing surface.
When reinstalling the sleeve, guide it gently through the chamber. Do not force it past resistance. A quartz sleeve can crack if it contacts the chamber edge or is twisted under pressure. Once the sleeve and O-rings are in their correct positions, install the retaining nut or end cap hand-tight, then tighten only as directed by the equipment manufacturer. Overtightening is a common mistake. It can distort the O-ring, damage plastic threads, crack an end fitting, or make the next service unnecessarily difficult.
Use the right replacement parts
A UV system is only as dependable as the parts installed in it. The correct lamp, sleeve, O-ring, and retaining hardware must match the model of the chamber. Even similar-looking components can differ by a few millimeters, which is enough to compromise a water seal.
Whenever possible, confirm the system model from the label on the reactor, controller, or original documentation before ordering service parts. If the system is older, verify the sleeve length, diameter, O-ring style, and end-cap arrangement rather than relying on a visual match alone. For trade professionals servicing multiple brands, labeling spare parts by system family helps avoid mix-ups on site.
Genuine manufacturer components provide the clearest fit assurance. Compatible replacement parts can also be appropriate when they are specifically identified for the exact system model and supplied by a knowledgeable UV specialist. The trade-off is simple: a lower-cost part is only a value if its dimensions and material are right for the application. A poor-fitting seal can turn a routine annual service call into a return visit.
Check installation conditions before blaming the seal
Not every chamber leak starts inside the chamber. Installation conditions can put stress on fittings and cause water to appear near the UV unit. Inspect the plumbing immediately upstream and downstream, including unions, threaded adapters, shutoff valves, and bypass plumbing. Water can travel along a pipe or fitting before dripping from the lowest point, making the source easy to misidentify.
Support the plumbing so the UV reactor is not carrying the weight of rigid pipe, valves, or filters. Misaligned plumbing can place side pressure on chamber ports and threaded connections. This may cause leaks immediately after installation or gradually as fittings shift over time.
Water pressure also matters. Most residential UV systems are built for normal household pressure, but pressure spikes from a well pump, faulty pressure switch, thermal expansion, or water hammer can expose a weak seal. If leaks recur after proper O-ring replacement and installation, check the system pressure against the UV manufacturer's rating. A pressure-reducing valve, expansion tank, or water-hammer control may be necessary in some plumbing layouts.
Freezing is another concern in seasonal properties. Water left inside a UV chamber can expand and damage fittings, end caps, sleeves, or the chamber body. Before closing a cottage for the winter, follow the system's winterization instructions and make sure the reactor is fully drained where freezing is possible.
Test the system slowly after reassembly
Once the UV chamber is closed, restore water pressure gradually. Keep the UV controller disconnected at first so you can inspect the chamber and lamp connection area without introducing an electrical hazard. Open the supply valve slowly, then watch each sleeve end, retaining nut, drain point, and threaded fitting for several minutes.
A dry chamber at first is encouraging, but do not rush the final check. Let the system sit under normal pressure, then inspect it again after nearby water use or a pump cycle. A slightly displaced O-ring may only begin to seep after pressure changes.
If a leak appears, shut off the water and depressurize the unit before touching any component. Do not attempt to tighten a sleeve nut on a pressurized chamber. Disassemble the affected end, inspect the O-ring and groove, and reinstall the parts according to the proper sequence. If the sleeve is chipped, the threads are damaged, or the chamber has visible cracking or corrosion, replace the affected component rather than trying to force a seal.
Build leak prevention into annual maintenance
UV lamp replacement is the ideal time to inspect seals, clean the quartz sleeve, and check the chamber for wear. Most UV lamps are replaced annually, even if they still glow, because UV output declines with operating time. Pairing lamp replacement with sleeve cleaning and O-ring inspection keeps the system easier to service and reduces the chance of an unexpected leak.
Water quality determines how much attention the sleeve needs between annual services. Hard water, iron, manganese, and sediment can leave deposits that reduce UV transmission and complicate sealing surfaces. If your water has persistent mineral issues, pretreatment such as sediment filtration or water softening may protect both UV performance and the chamber components.
Keep a simple record of the system model, lamp replacement date, sleeve size, and O-ring part number. That record is useful when ordering parts, especially for a property manager, contractor, or cottage owner who may not service the unit every year. It also makes it easier to get accurate support if a fitting or seal needs to be identified.
A dry UV chamber starts with careful service, correct parts, and a slow pressure test. If the leak source is uncertain, stop the system before water reaches the electrical connection and confirm the exact replacement components for your UV model. A few minutes of inspection now can protect the equipment and keep your water treatment system ready for the season ahead.
